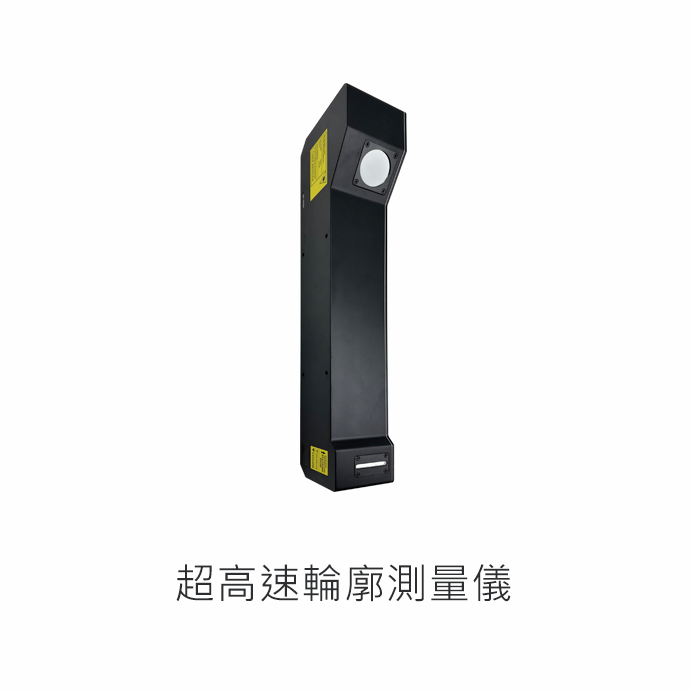

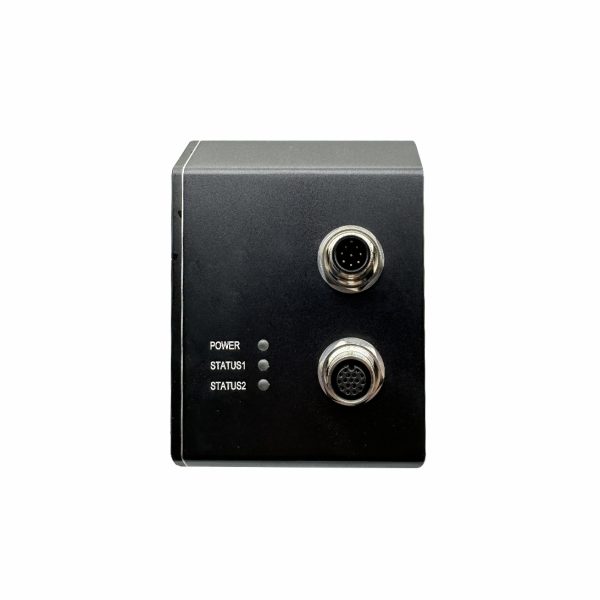

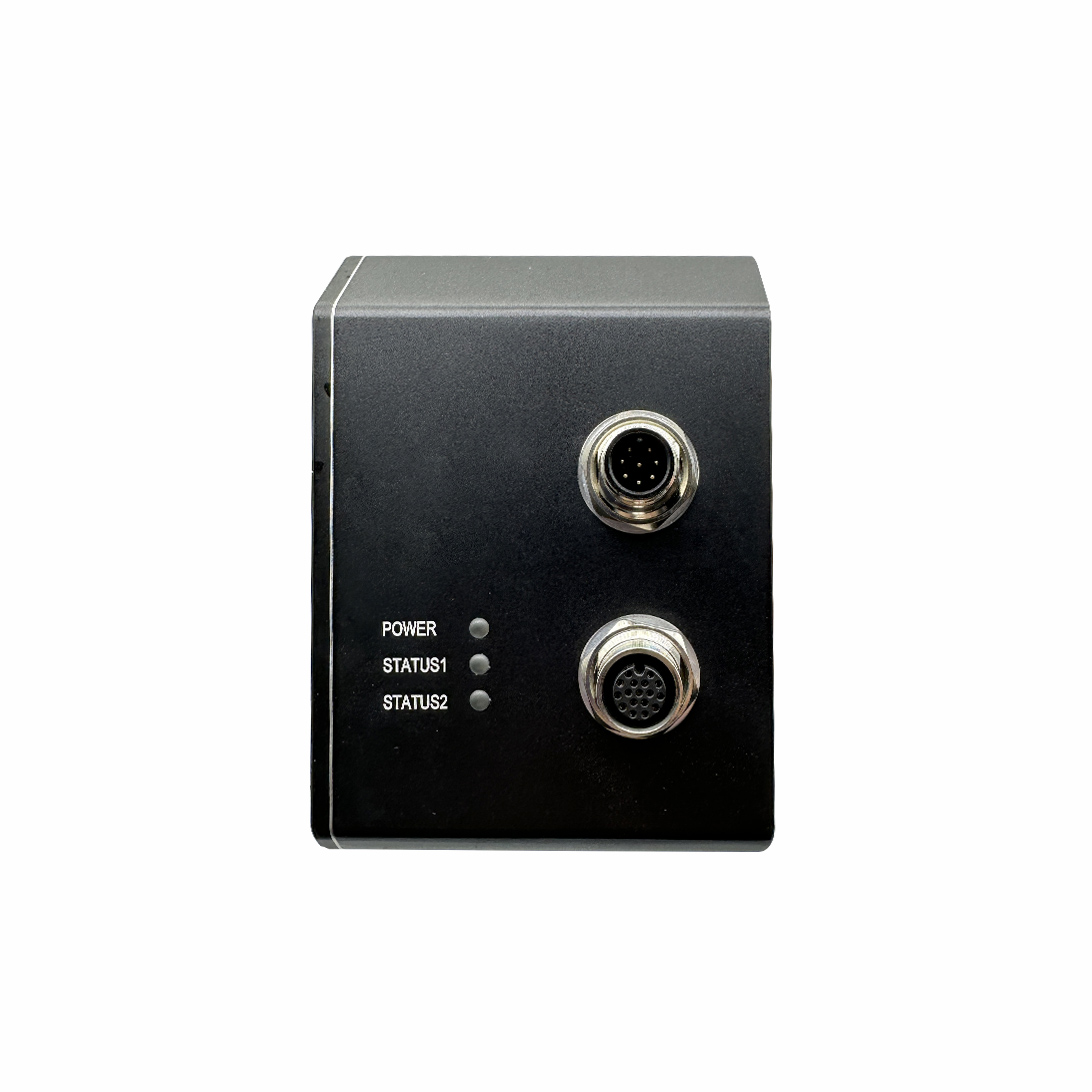

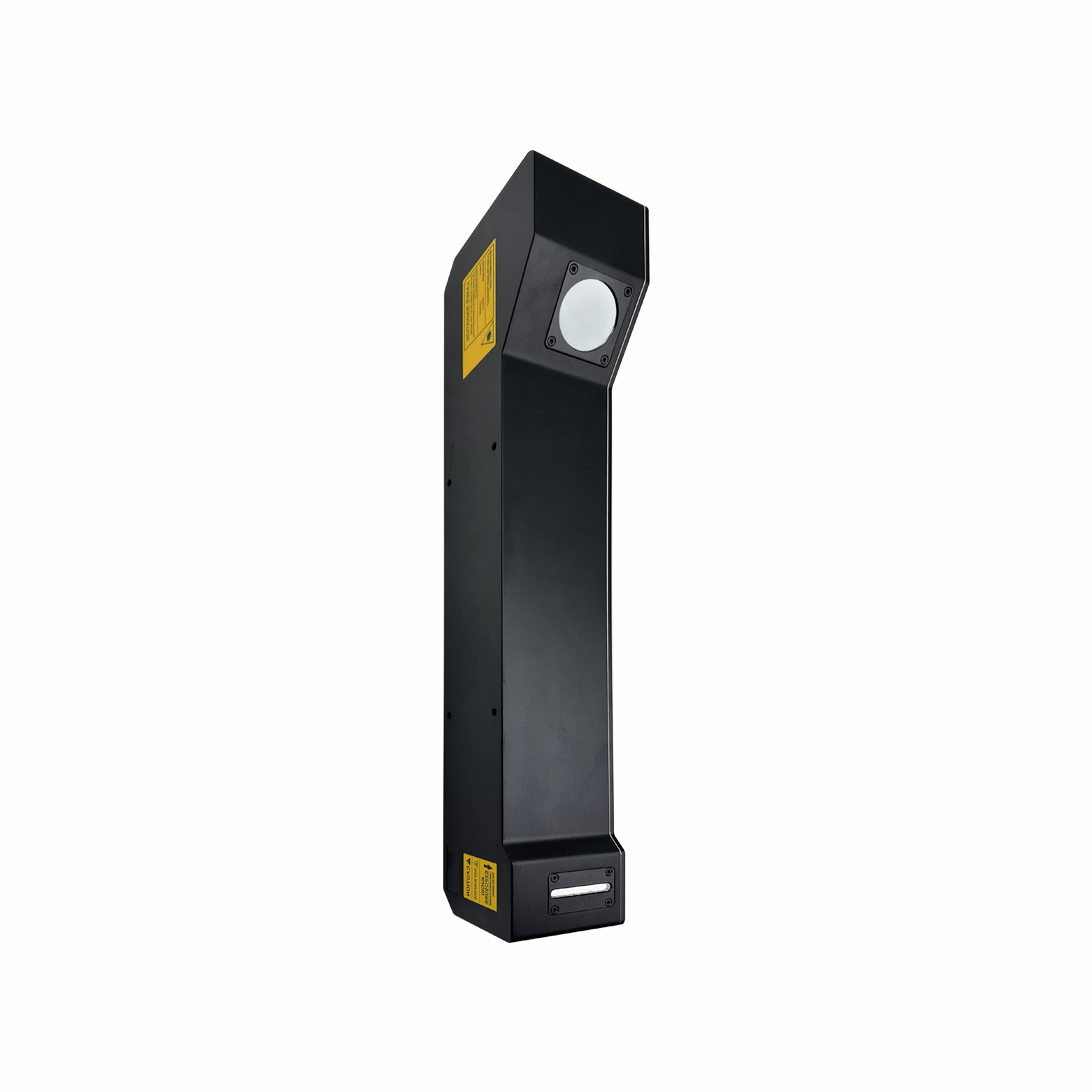

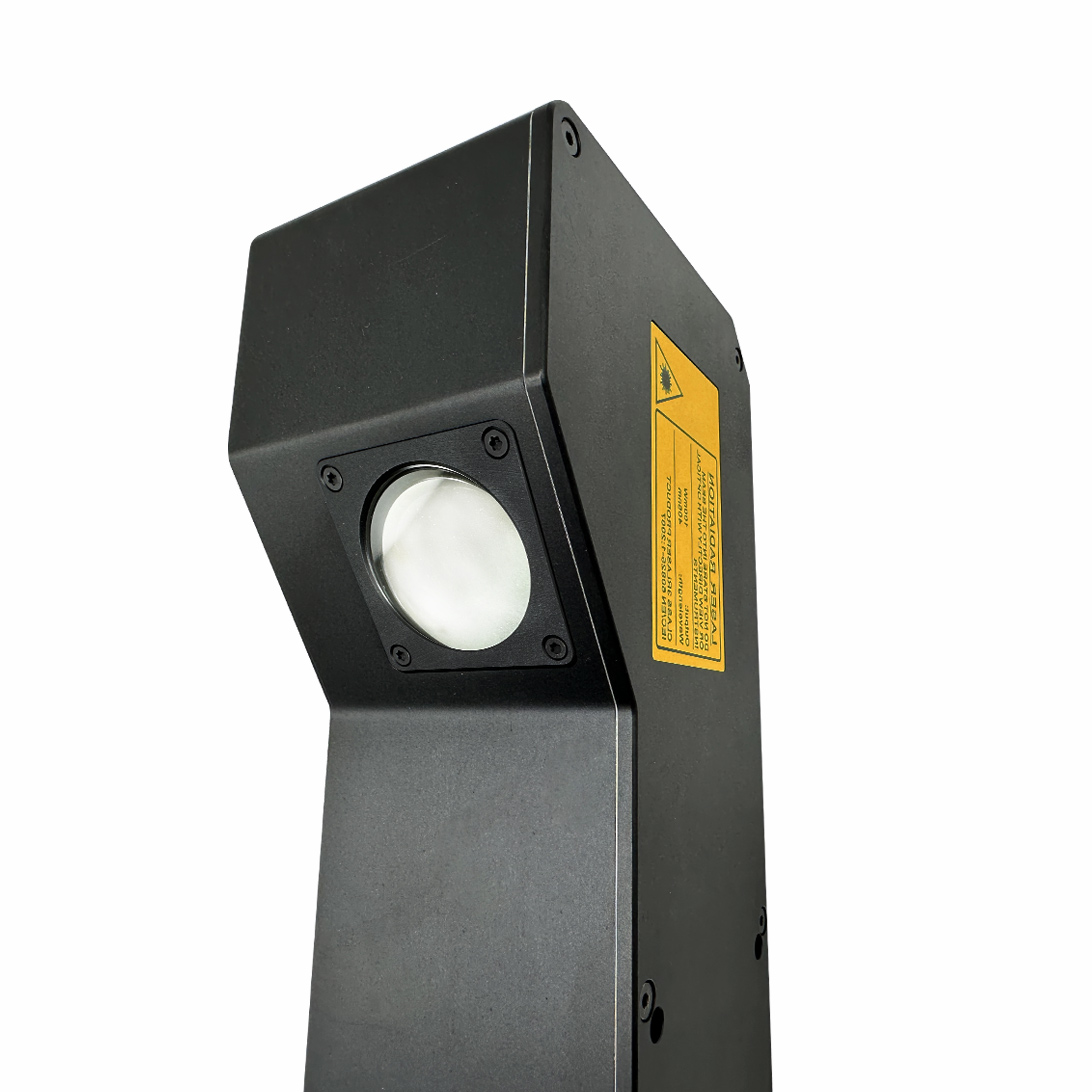

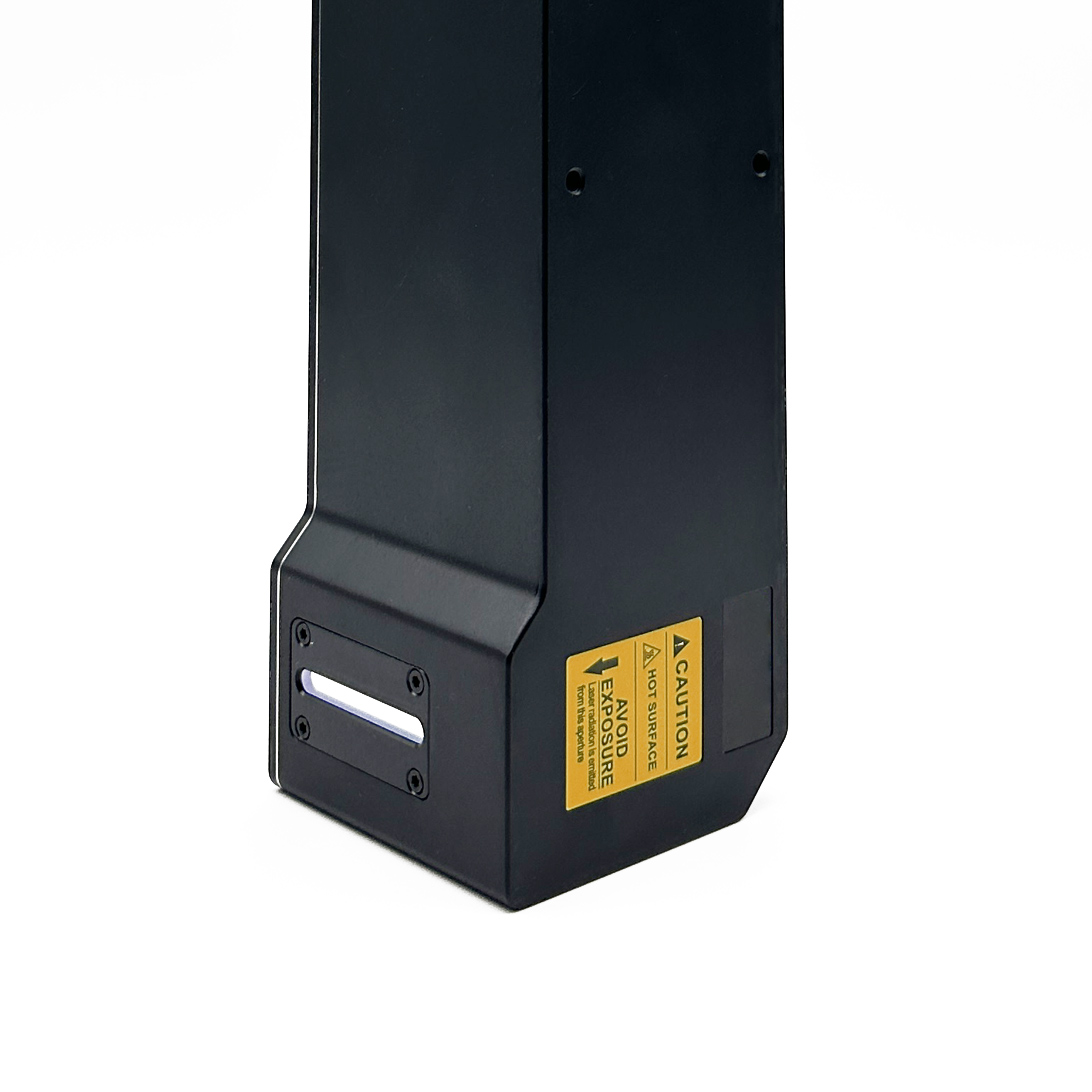

RGX-6600 High-Speed 3D Laser Line Profile Sensors (Measuring Range (CD) 555mm)
RSTC all-in-one high-speed 3D laser line profile sensors provide complete 3D inspection from onboard the sensor head (including scan, measurement and control) all within the sensor itself, scanning speeds from 2500 to 64000Hz and it can work on dark, specular etc material surfaces for inline inspection.
Advantages
- Fast scan speed, with a full frame of 2500Hz to maximum 64000Hz with windows open.
- The type of 3D machine vision products are complete, and the 3D line laser profile sensors automatically cover a wide range of vision X,Y and Z direction.
- 3D laser profile sensor with high precision measurement: Real-time height, widths and length measurements using laser triangulation.
- Adopting a linear laser scheme, it has strong environmental adaptability and does not rely on physical texture, overcoming the problem of poor imaging quality in edge areas.
- Every factory deserves smart 3D laser profile sensor, effectively improving work efficiency and reducing products defect rate, ultra compact for easy system integration.
Features
- 3D measurement software platform
- Full field 2500Hz
- 3200 point ultra high resolution
- Z-direction repetition accuracy can reach 5 μm
- X-axis minimum data interval is 193 μm
Parameters
RGX-6600 | |
Measuring Range (CD) | 555mm |
Z-axis Height (MR) | 456mm |
X-axis (Width) ：Proxima | 360mm |
X-axis (Width) ：Reference Distance | 460mm |
X-axis (Width) ：Remote | 620mm |
Light Source Wavelength | 405mm |
X-axis Contour Points | 3200 |
X-axis Data(Width) | 193 μm |
Linear Z axis (Height) | ±0.05% of MR |
Repeatability Z-axis (Height) | 5 μm |
Scan Speed (Hz) | 2500-64000Hz(The maximum frame rate in full field of view is 2500) |
I/O Interface | 2 groups input interfaces (1 group scan control input,1 external trigger control input), 2groups programmable output interfaces |
Encoder Interface | 1group 5V differential encoder input |
Data Communication Interface | Gigabit Ethernet |
Power | 24V DC ±10% |
Operating Temperature | 0℃ ~ 45℃ |
Storage Temperature | -20℃ ~ 70℃ |
Working Humidity | 35% ~ 85% non-condensing |
ESD Protection | Contact discharge ±6kV, Air discharge ±8kV |
EFT Protection | 2kV |
Punch | 15G Half-sine wave, lasting 11ms, wave once positive and negative directions of X, Y and Z individually |
Vibrate | Frequency 10 ~ 55Hz, Bidirectional amplitude 1.5mm |
IP Rating | IP65 |
Data Cable (Wiring) Model | Standard aviation plugs 3m, other length is optional |
Dimensions (mm) | 700mm*109mm*79mm, include connector 715mm*109mm*79mm |
Package Dimensions(mm) | 530mm*230mm*155mm |
Net Weight(g) | 3010g |
Package Weight(g) | 4440g |
Applications Detection Picture
Software Interface Picture
3D Point Clouds Picture

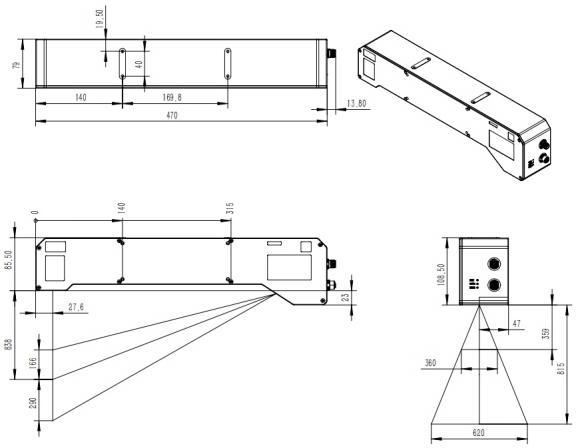

Structural Diagram
Our Services
Wondering if high-speed 3D laser line profile sensor can work for you? Finding out is simple.
- We supply customers with better product, quicker response, more value added expertise service.
- We provide personalized customization services, such as logo, software and hardware customization etc.
- We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
- Our RSTC Application Lab is here–A dedicated lab for scanning materials for inspection and learning if 3D laser line profile will provide real value for Industry 4.0 smart manufacturing.
