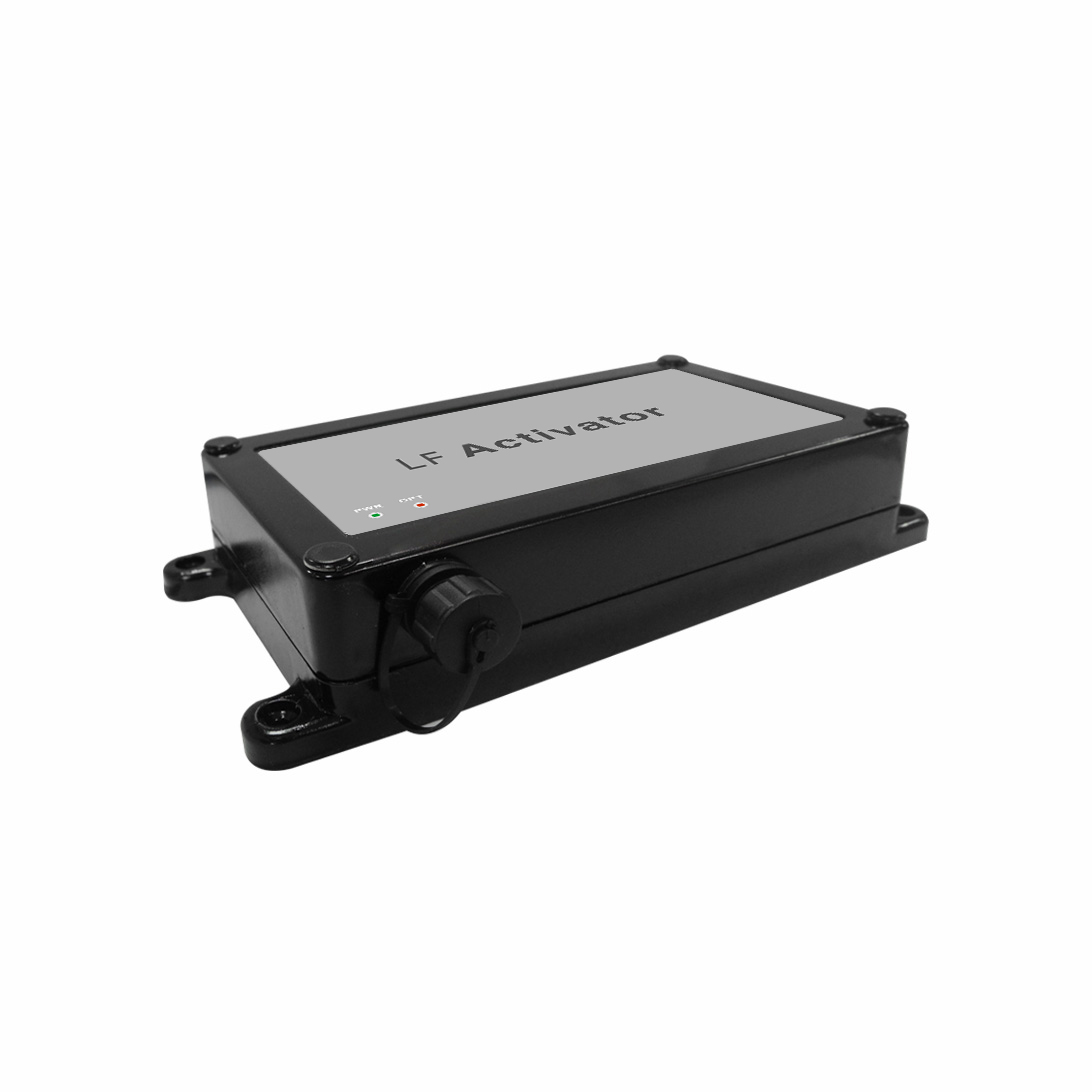

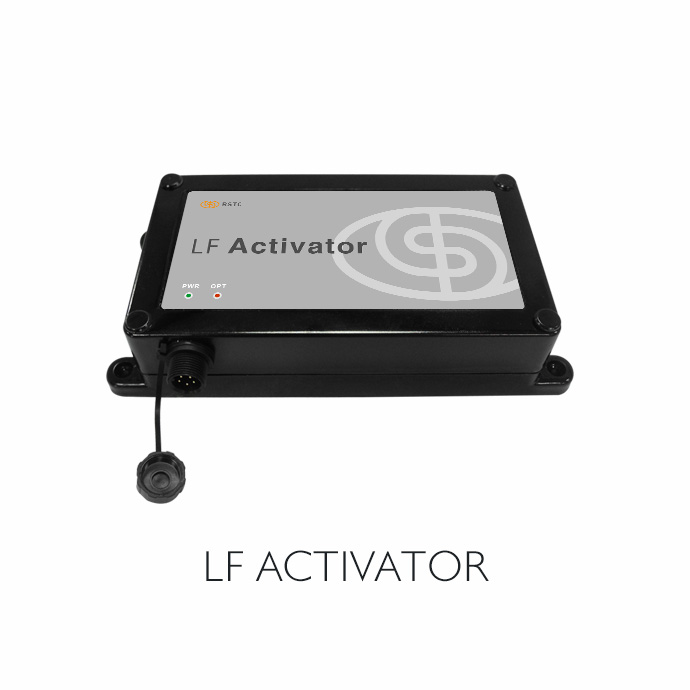

RS-AE01 125 KHz LF RFID Activator
RS-AE01 is 125 KHz LF RFID Activator, it works with 2.45 GHz active and 125 KHz LF wake up tag, 2.45 GHz RFID active reader, realize real-time location tracking as such personnel and items location tracking etc project.
No Downloadable Files
Functions
- Working on 125KHz±1KHz
- Built-in antenna
- Activating tag range: <5m (semi-diameter)
- Activating distance adjustable wirelessly by software
Applications
Indoor personnel and items realtime location tracking
Parameters
| Permormance Indexes | |
| Operating Frequency | 125KHz ±1KHz |
| Modulation Type | Adjustable by software (RS485) or set by hardware |
| Antenna Output Power | <5W |
| Activator Id | 8 bit |
| Tag Activating Area | 1-6m (Activating radius adjustable) |
| General Parameters | |
| Operating Temperature | -20℃~+55℃ |
| Storage Temperature | -40℃~+80℃ |
| Humidity | 5%~95% (non-condensing) |
| Working Voltage | DC 12V (compatible with DC 9-18V) |
| Power Consumption | 5W |

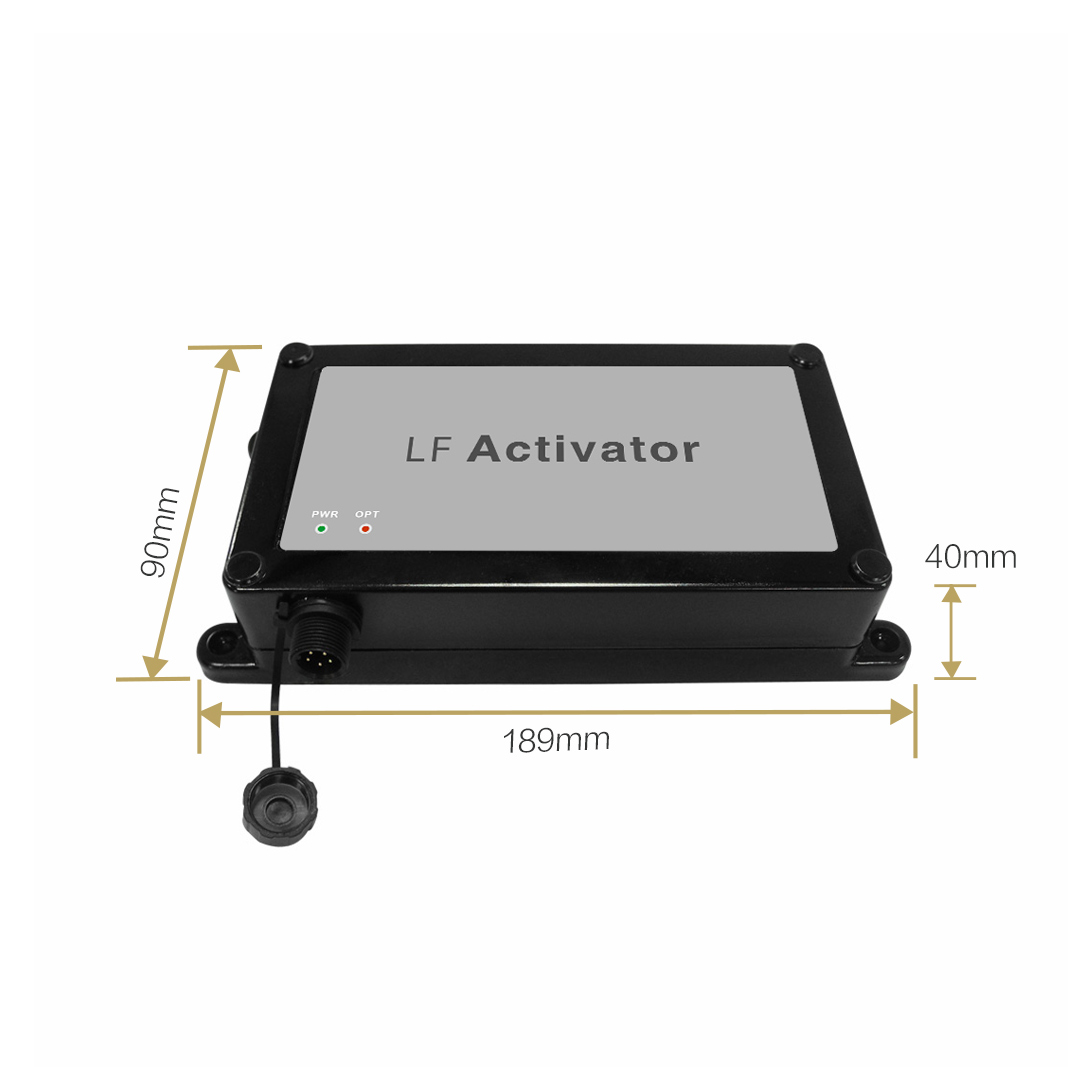

| Dimensions | 189 × 90 × 40mm |
| Weight | 225g |
Our Services
Wondering if our RFID device can work for you? Finding out is simple.
- We are accepting your sample materials to run through our RSTC Lab for free testing and get the result. (You just need provide test sample)
- We supply customers with better product, quicker response, more value added expertise service.
- We provide personalized customization services, such as logo, software and hardware customization etc.
