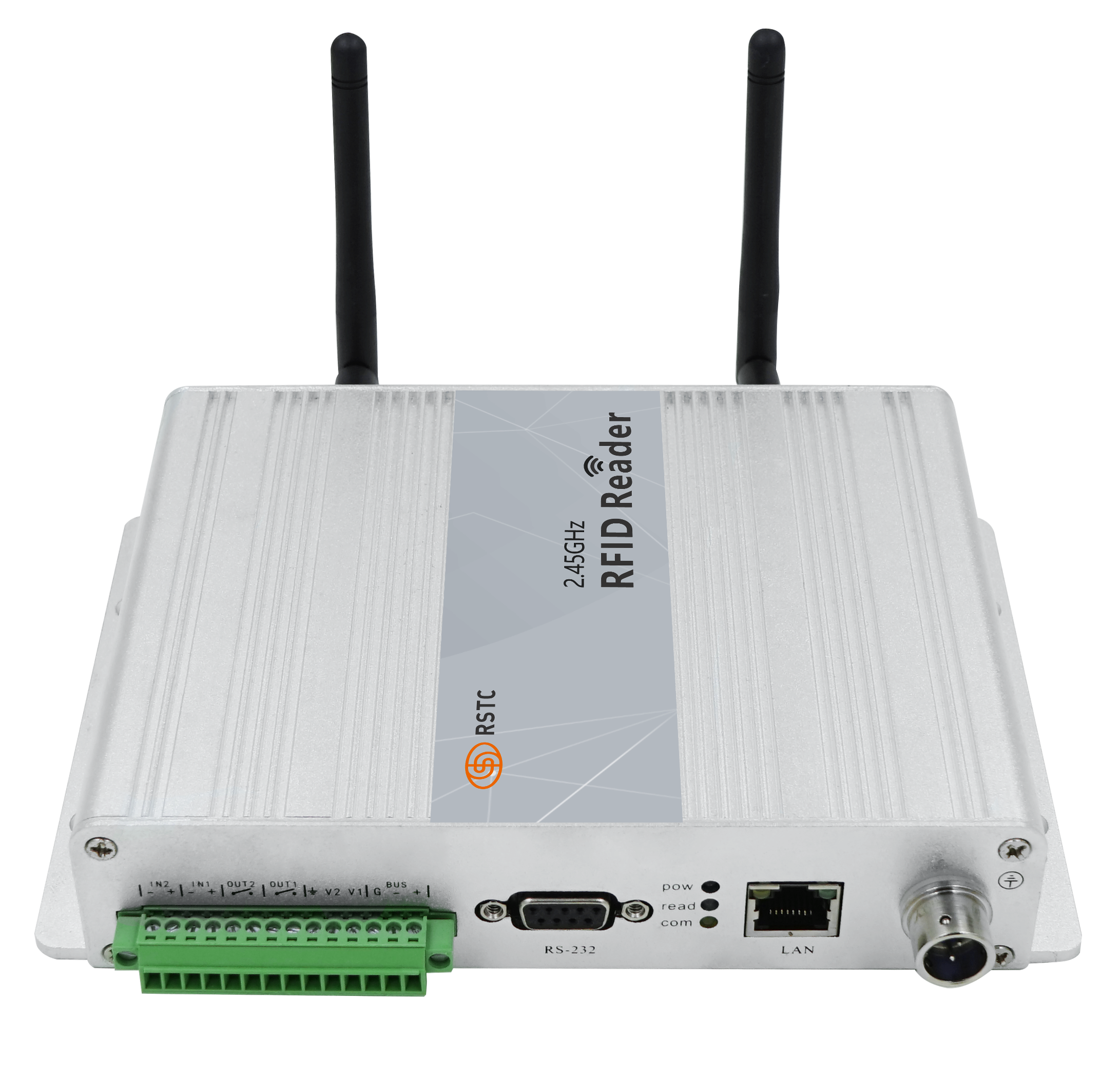

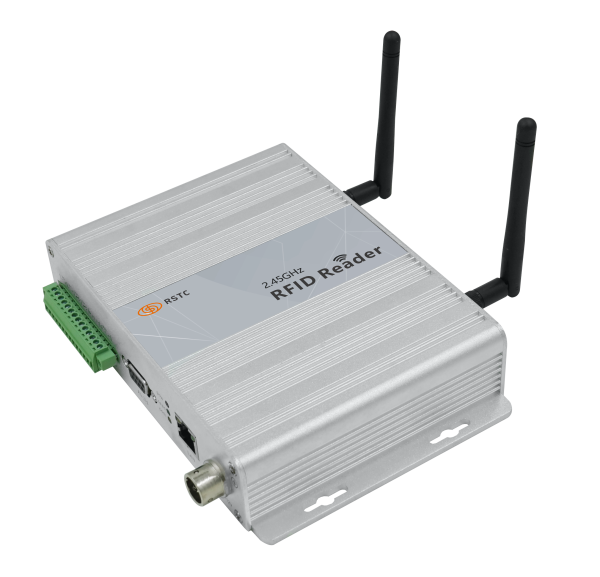

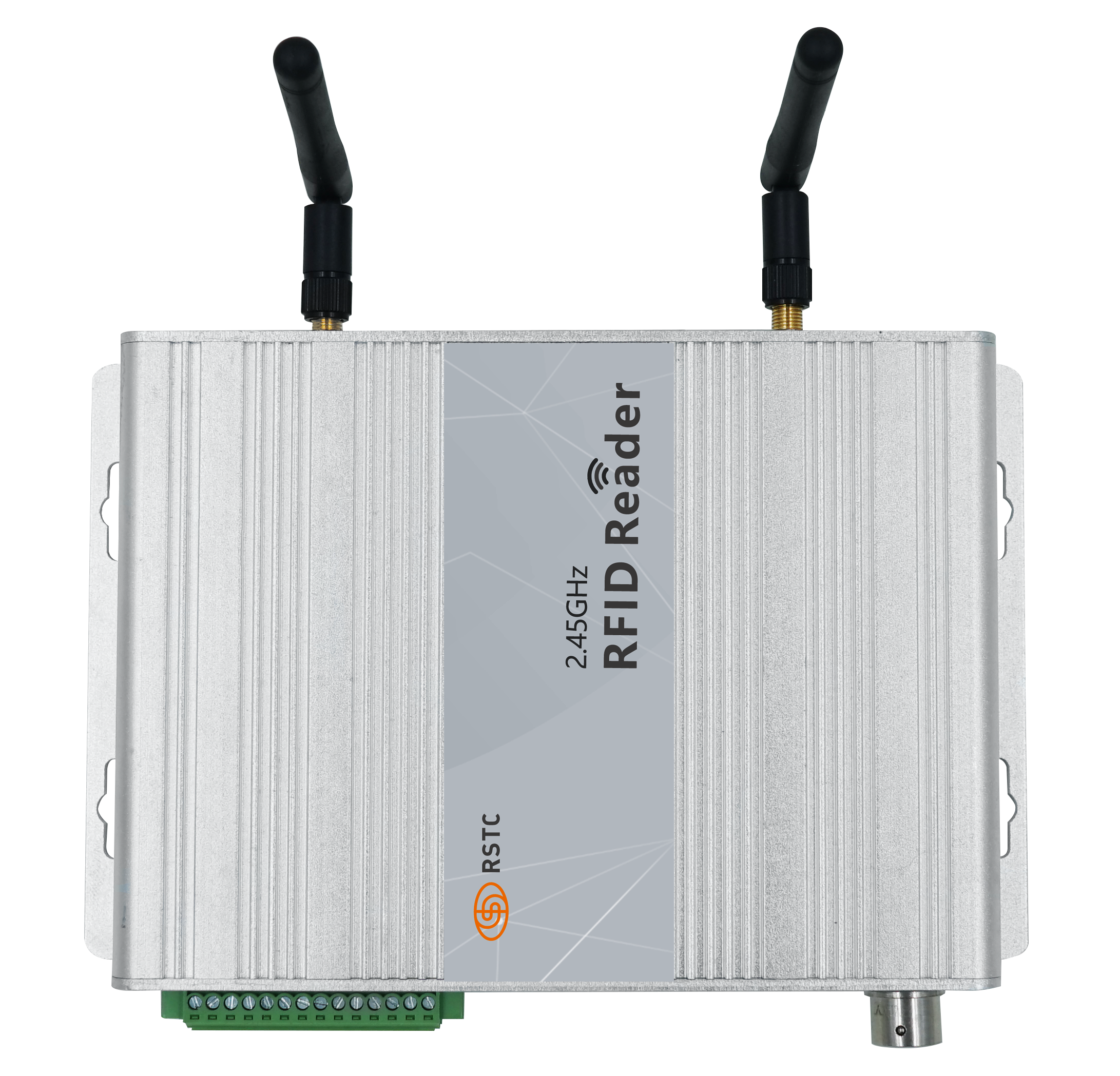

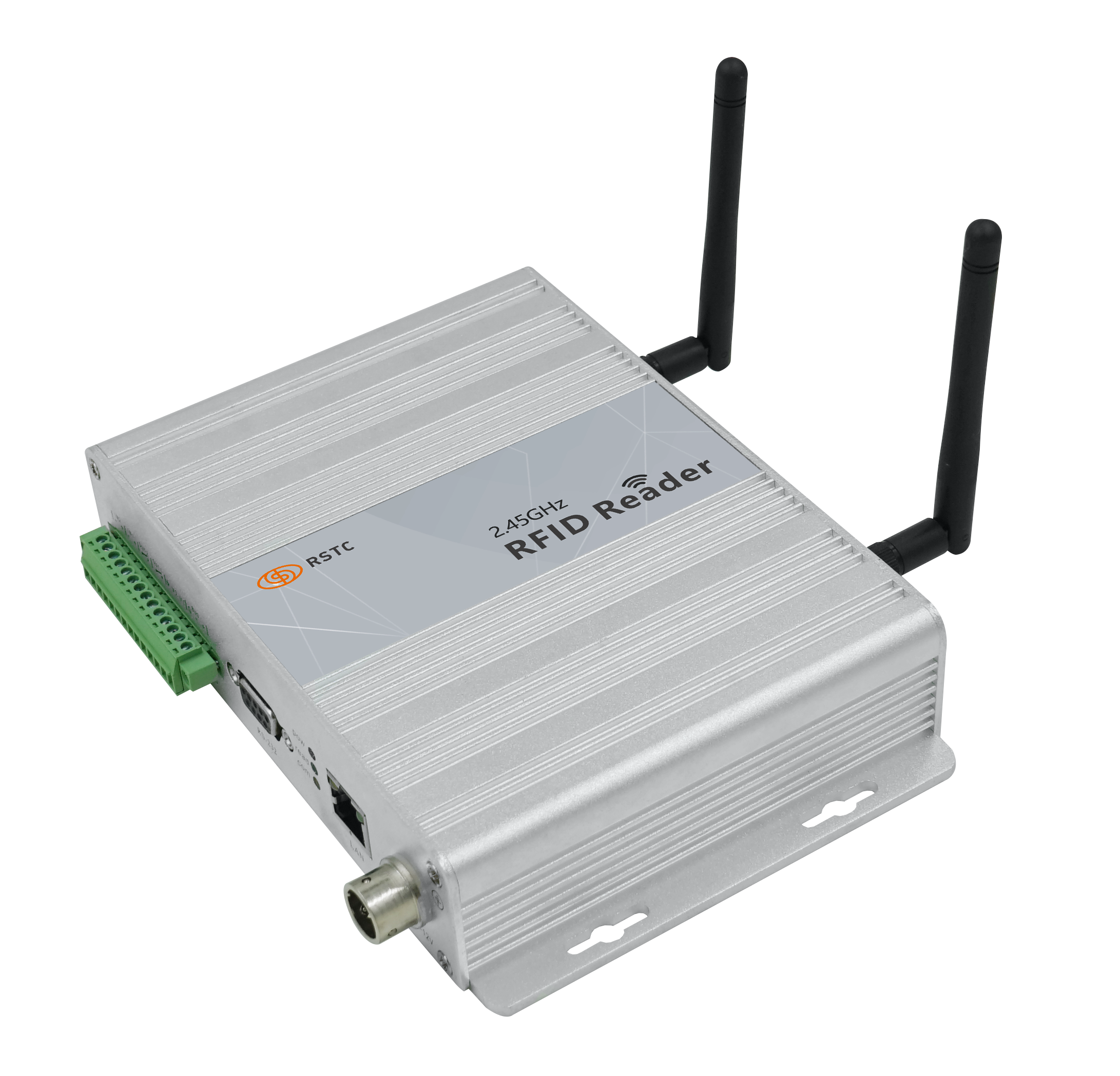

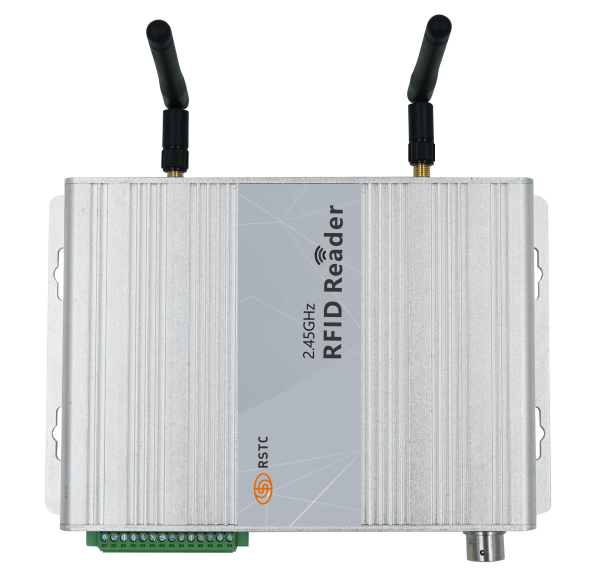

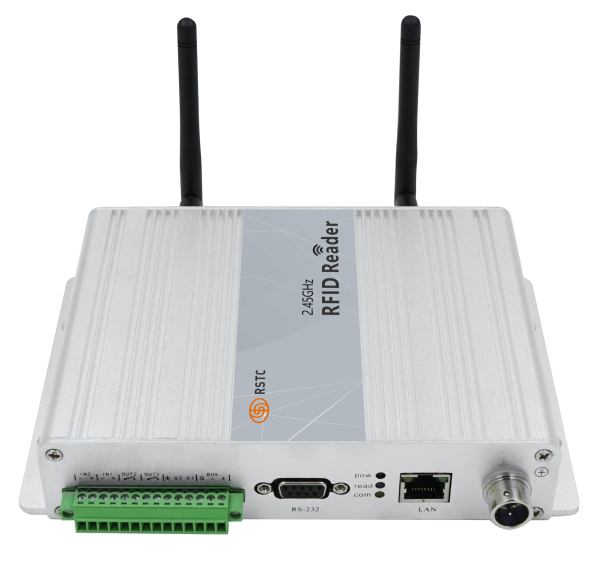

RS-AR01A 2.45 GHz Omni-Directional Active RFID Fixed Reader
RS-AR01A fixed Omni-Directional Active RFID Reader operates in the 2.45 GHz band, with high recognition, long-range, powerful, high reliability& expandability and other characteristics, can work under extreme indoor and outdoor environment for different application. The active RFID reader has built-in reading distance adjustment control and RSSI tag signal intensity detection circuit. The reading distance can be controlled by software within the range of 0 to 180 meters.
Functions
- Long and adjustable reading distance: 0-80m
- Fast reading speed: Can reach up to 200 tags/s
- Support RS-232, 10/100M Ethernet, Wigand 26/34 & relay output and optional interfaces including RS485, etc.
- Optional wireless transmission: 4G or WIFI
- Support different work modes: Active/passive work modes, command trigger, timing trigger and other modes optional to satisfy different integration requirements.
- Free development resources: will provide powerful API UI for development and integration
- Remote maintenance: parameters configuration, program upgrade and log viewer.
- Data protection: data buffer storage and automatic upload
Applications
- Warehouse logistics, supply chain management
- IT Asset Inventory Management
- Industry 4.0 Smart Manufacturing employee management
- Club members,hospital patients and students management
Recommended Customers
- System Integrators
- RFID Distributors
- Software Developers
- Big End Customers
Parameters
| Electrical Parameters | |
| Operating Frequency | 2400MHz～2483.5MHz |
| Frequency stability | ±20ppm |
| Output power range | -6dBm～+20dBm@50Ωload (default value 0dBm) |
| Output flatness | ±1.5dBm |
| Sensitivity | better than -92dBm |
| Reading distance | 0-80 under open environment |
| Reading speed | ≥200 tags/s |
| Communication Interface | |
| Communication Interface | RS-232 interface, 10 / 100M adaptive Ethernet |
| Optional Interfaces | RS-485 interface, Wiegand 26/34 interface (customized) |
| Wireless Expansion Module | GPRS (optional), 802.11 WIFI module(optional) |
| I/O Port | 2- channel relays output(optional), 2- channel trigger input(optional) |
| Antenna port | Standard SMA |
| Mechanical and Electrical Properties | |
| Product Dimensions | 189.7mm × 125.08mm × 36.74mm (without antenna) |
| Package dimensions | 260mm ×220mm × 110mm |
| Weight | Net Weight 0.65kg, Gross weight 1.7kg（stand included) |
| Power Supply | DC 12V / 3A |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -30°C~+70°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Water/Dust-proof Rating | IP67 |
| Installation Method | Desktop or wall mounted |
