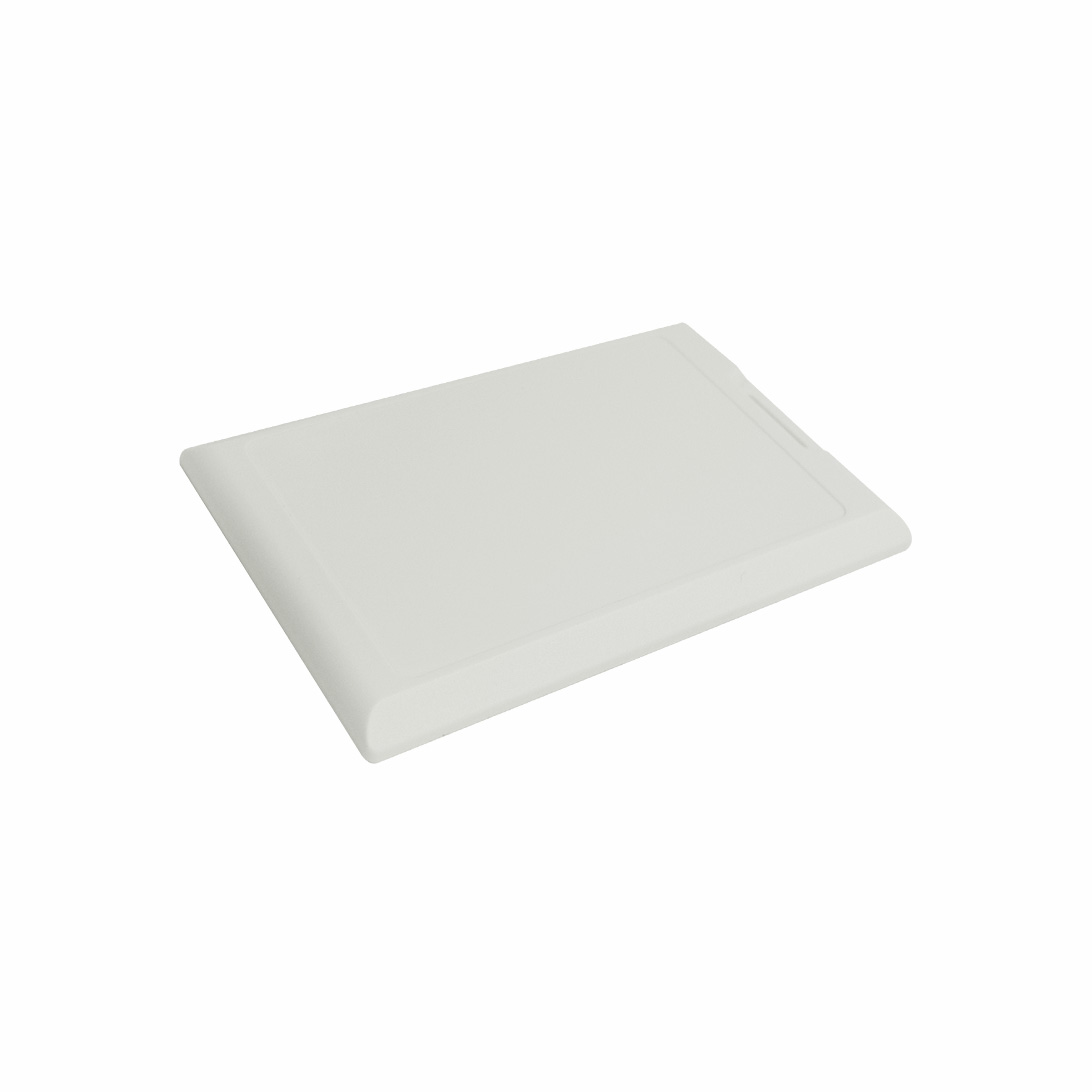

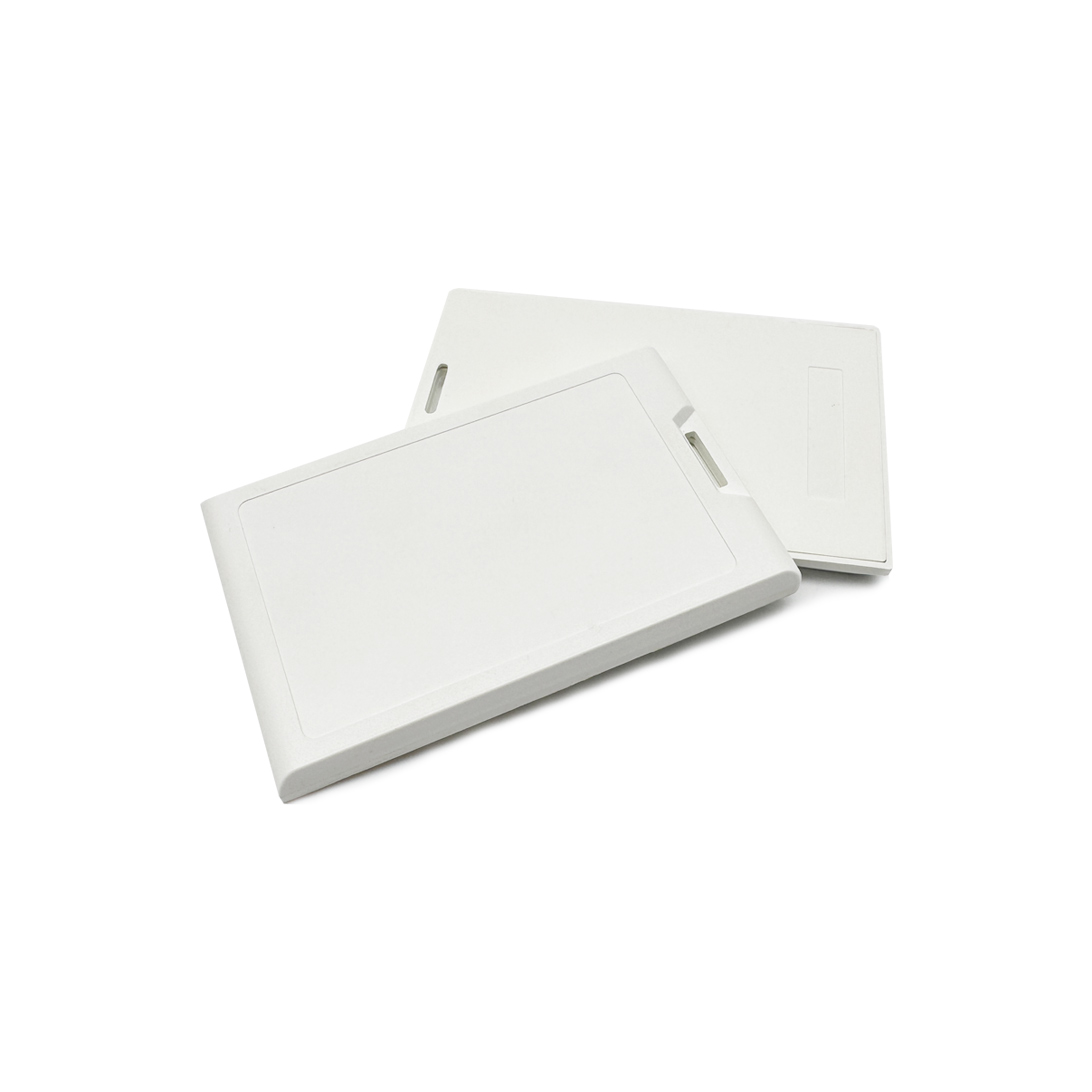

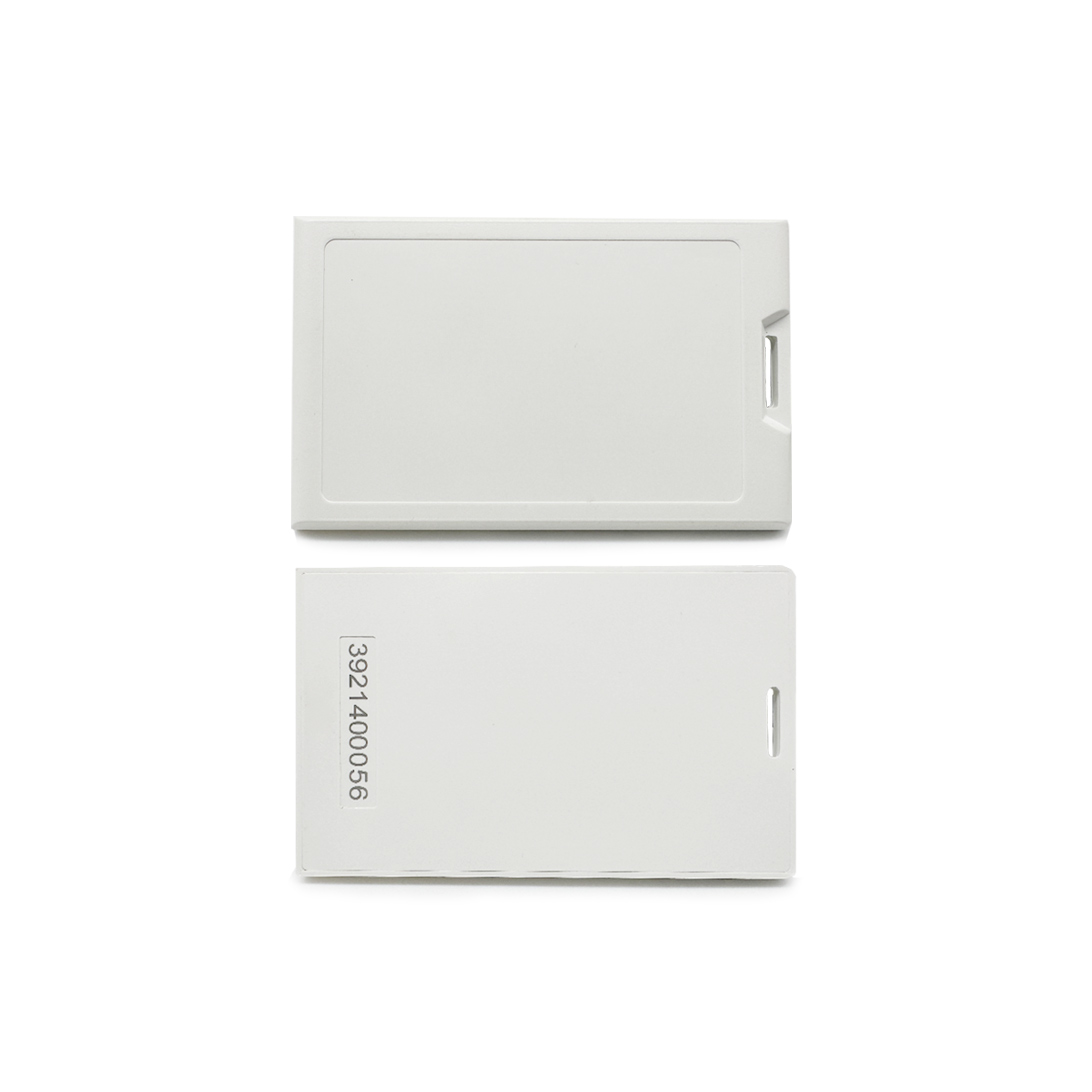

RS-AT03 LF Wake-Up Active RFID Tag
RS-AT03 2.45 GHz active and LF wake-up RFID tag operates in 2.4GHz and 125 KHz frequency band, featured in 80m long range distance reading, low battery consumption to assure long battery life, it is mainly used for personal management, construction filed employee tracking , school students time attendance system, asset tracking system etc.
Functions
- Exclusive lowpower consumption, longer working time
- Permanent 4-byte basic ID
- Passive operating model( read only)
- Up to 80m reading distance, suitable for people and items tracking management
Parameters
Performance Indexes | |
Working Frequency | 2.40GHz~2.48GHz |
Signal Interval | 1s |
Output Power | -6dBm±1.0dBm |
Reading Distance | 0~100m (after wake up by the activator) |
General Parameters | |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+60℃ |
Humidity | 5%~95% (non-condensing) |
Battery Parameters | 550mAh |
Working voltage | DC 2.4V~3.0V |
Battery Life | 2 years life (related with the operating mode and output power) |
Working Current | Standby＜100uA; Transmitting＜20mA(peak) |

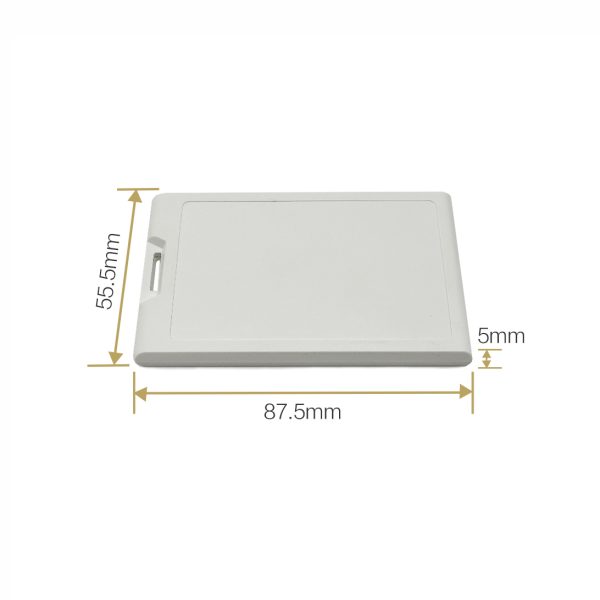

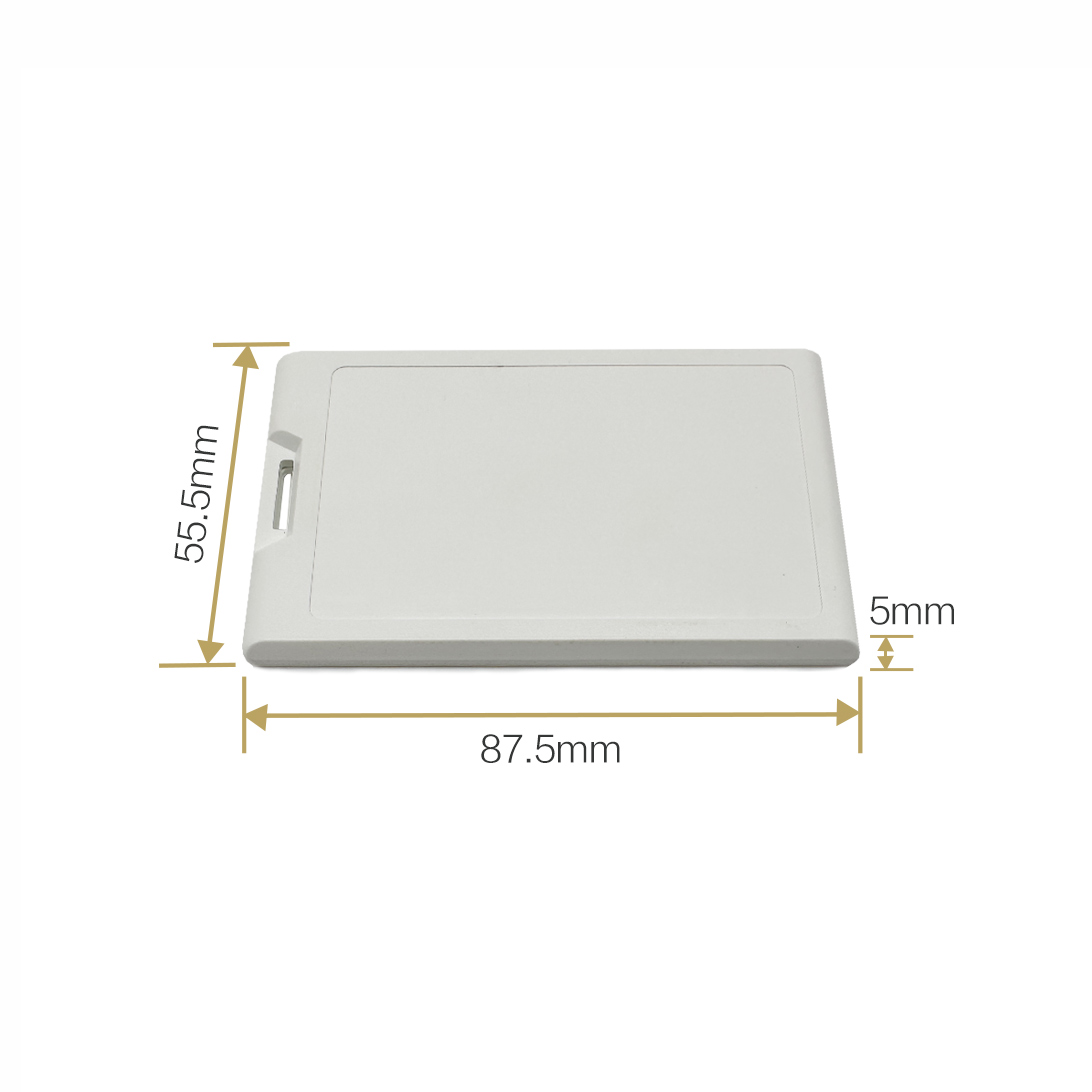

Dimensions | 87.5 ×55.5 ×5.0mm |
Weight | 50g |
Our Services
Wondering if our RFID Solutions can suit you? Finding out is simple.
- We are offering free testing onyour sample materials to run through with our equipment in our RSTC Lab. (You just need to provide testing equipment and sample)
- We supply customers with better product, quicker response, more value-added expertise service.
- We provide personalized customization services, such as printed logo, software and hardware customization etc.
Get a Quote
