RS-AT05 2.45 GHz Active RFID LED & Buzzer Tag
RS-AT05 2.45 GHz active RFID LED & Buzzer tag with waterproof and battery changeable design, the tag RS-AT05 is very suitable for many application occasions such as asset management/ monitoring/ locating etc.
Functions
- Operate under customizable 2.405GHz-2.480GHz working frequency, default value is 2.455GHz, customization is available.
- Supports LED, Buzzer, can get location of the tag via these.
- Passive work mode.
- Battery low voltage alert.
- Long battery life which can reach up to 1 year(related with the operating mode and output power).
Parameter
Performance Indexes | |
Working Frequency | 2.40GHz~2.48GHz, default value is 2.45GHz |
Signal Interval | 1s (customizable from 100ms-60s) |
Output Power | -6dBm±1.0dBm |
User area (rewritable) | 512B |
Reading Distance | 0~50m (after wake up by the activator) |
General Parameters | |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+60℃ |
Humidity | 5%~95% (non-condensing) |
Battery Parameters | 600mAh, CR2450 button battery |
Battery Life | 1 years life (related with the operating mode and output power) |
Working Current | Standby＜3uA; Receiving＜25uA; Transmitting＜250uA(peak) |

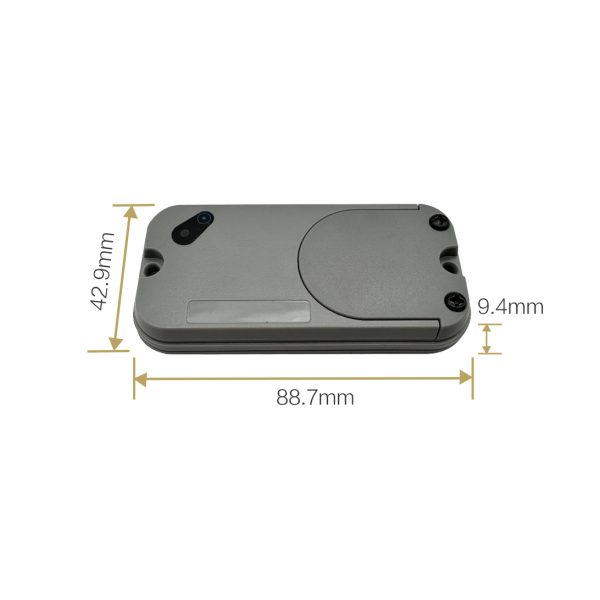

Dimensions | 88.7 ×42.9 ×9.4mm |
Weight | 32g |
IP Rating | IP54 |
